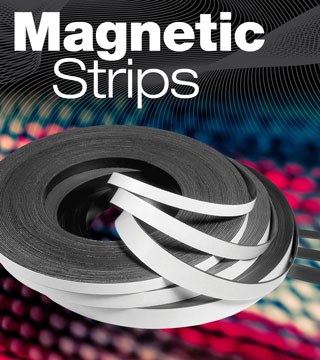

Flexible Magnetic Strip
Magnum® brand strip is available plain or with different surfaces. Choose vinyl or add foam, rubber or acrylic adhesive to create magnetic tape. Our extruded magnetic strip and magnetic tape will cut cleanly and easily. Ask us about options we can offer for your particular need.Magnetic Strip Specifications
Standard thicknesses range from .025” (.64 mm) to .250” (6.35 mm). Standard widths are .5” (12.7 mm), .75” (19.1 mm), 1” (25.4 mm), 1.5” (38.1 mm), 2” (50.8 mm), and 3” (76.2 mm). 4” (101.6 mm) is also standard for certain thicknesses. Standard roll lengths up to 200 ft. (60.96 m) depending upon the thickness.
Magnetization Options
We use multi-pole magnetization for our standard magnetic strip. Standard energy or high energy. However, we are able to offer these other magnetization options: conventional through width, conventional through thickness, and two poles on each face. Match pole magnetization is also available. Contact us for more details.
View our Extrusion sell sheet here 169KB PDF.
